Part 2: Understanding Alternator, Its Components, and Working Principle

Diesel generators play a vital role in ensuring uninterrupted power supply, and at the heart of this power generation process is the alternator. While the diesel engine provides the mechanical power, it is the alternator that converts this energy into usable electrical power. Understanding the alternator, its components, and its working principle is essential for effective operation, maintenance, and troubleshooting of a diesel generator.

This is the second part of our 8part Operation and Maintenance of Diesel Generators series, where we delve deep into the alternator’s role in power generation, its components, and how it functions. If you haven’t read Part 1 yet, which covers the diesel engine’s working principles and key components, be sure to check it out for a complete understanding of the system.

Check Out Part 1: Operation and Maintenance of Diesel Generators – Part 1: Understanding Diesel Engine, Its Working Principle and Key Components

What is an Alternator?

An alternator is an electromechanical device that converts mechanical energy into electrical energy in the form of alternating current (AC). It plays a crucial role in diesel generator (DG) sets, ensuring a stable power supply to various electrical loads. Unlike a battery, which stores and provides direct current (DC) power, an alternator continuously generates AC power as long as the engine is running.

How Does an Alternator Work?

The alternator is mechanically linked to the engine’s crankshaft through a rotating shaft. As the engine runs, it rotates the alternator, initiating the power generation process. Here’s a step by step breakdown of how the alternator functions:

Initial AC Voltage Generation:

• The alternator’s Permanent Magnet Generator (PMG) produces a low AC voltage when the rotor starts spinning.
• This voltage is supplied to the Automatic Voltage Regulator (AVR), which manages the power flow.

Excitation and Magnetic Field Creation:

• The AVR converts this AC voltage into DC voltage and supplies it to the excitation alternator’s field winding (stator), creating a magnetic field.
• As the rotor continues to spin, it cuts through the stator’s magnetic field, inducing an Electromotive Force (EMF) in the winding.

Rectification and Voltage Regulation:

• The generated AC voltage passes through the Rotating Rectifier Diode (RRD), which converts it into DC voltage.
• This DC voltage is then fed to the main alternator’s field winding (rotor), strengthening the magnetic field.

Final AC Power Output:

• The rotor’s motion inside the stator induces an AC voltage in the armature windings.
• This AC power is regulated to maintain a steady output voltage suitable for powering electrical loads.
• This continuous cycle ensures that the generator delivers a stable and efficient AC power supply for various applications, making it an indispensable component in power generation.

Supporting Components in the DG Set

While the alternator is responsible for generating electricity, a diesel generator (DG) set includes several supporting components that ensure smooth operation, reliability, and efficiency. These components play crucial roles in starting the engine, maintaining voltage stability, protecting the system, and ensuring operator control. Below is a detailed explanation of these essential supporting elements.

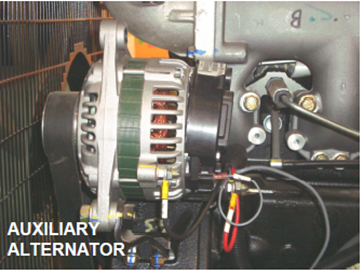

1. Auxiliary Alternator

The auxiliary alternator is a secondary power source within the DG set, primarily responsible for charging the battery and providing power to auxiliary components. It plays a critical role in ensuring the generator can start reliably and maintain proper electrical function.

• The inbuilt rectifier inside the auxiliary alternator converts AC output into DC to charge the battery efficiently.
• A voltage regulator ensures that the charging process remains stable and does not overcharge or undercharge the battery.
• It supplies power to minor control panel circuits, relays, and sensors, ensuring smooth operation of the generator when the main alternator is not running.

A well maintained auxiliary alternator is essential for keeping the generator’s electrical system operational, especially in standby power applications.

2. Starter Motor

The starter motor is one of the most crucial components in a DG set, responsible for cranking the diesel engine and initiating the power generation process. It functions by converting electrical energy from the battery into mechanical energy, which turns the engine’s crankshaft.

• The starter solenoid switch is activated when the ignition key or start button is pressed.
• This allows the starter pinion gear to engage with the flywheel ring gear, rotating the engine at sufficient speed for it to start running on its own.
• The battery must have adequate charge for the starter motor to function correctly, as insufficient voltage can lead to weak cranking or failure to start the engine.

To ensure smooth engine startup, regular maintenance of the starter motor and battery connections is required, as voltage drops or worn out parts can hinder its performance.

3. Battery

The battery is a vital component in any diesel generator, supplying the initial power required to start the engine and providing backup power for critical control systems. The size and capacity of the battery depend on the generator’s kVA rating:

• 12V Battery – Used for DG sets up to 125 kVA.
• 24V Battery – Required for DG sets above 140 kVA to provide the necessary starting power.

Apart from cranking the starter motor, the battery also powers:

• Engine safety unit, ensuring protection mechanisms like shutdown during critical faults.
• Control panel instruments, such as gauges and meters, to monitor engine parameters.
• Emergency lighting and auxiliary electrical circuits in the generator system.

Proper battery charging, cleaning of terminals, and voltage level monitoring are necessary to prevent starting issues and power interruptions.

4. Control Panel

• Power Distribution: Transfers AC output from the alternator to the electrical load efficiently.
• Voltage & Frequency Control: Ensures stable voltage and frequency output based on the generator’s operating parameters.
• Monitoring and Protection: Displays real time readings of engine and alternator conditions, such as:
• Engine Oil Pressure Gauge – Monitors lubrication system health.
• Water Temperature Gauge – Prevents overheating issues.
• Engine Oil Temperature Gauge – Ensures optimal oil temperature for smooth operation.
• Tachometer / Hour Meter – Displays engine speed (RPM) and running hours for maintenance tracking.
• Fuel Level Indicator – Monitors fuel levels to prevent unexpected shutdowns.
• Vacuum Indicator – Detects air filter clogging and vacuum pressure.
• Air Pressure Gauge – Measures air intake pressure in turbocharged engines.

Regular testing and preventive maintenance of control panel components are crucial for smooth DG operation and avoiding unexpected faults.

5. Acoustic Enclosure (Canopy)

A diesel generator produces significant noise due to the mechanical motion of engine components and the combustion process. To minimize noise pollution, generators are enclosed within an acoustic enclosure (canopy), which provides sound insulation and weather protection.

• Constructed from Cold Rolled Carbon Annealed (CRCA) sheet, making it durable, corrosion resistant, and soundproof.
• Lined with high density noise absorbing material, reducing noise levels to 75 dBA or lower at 1 meter distance.
• Complies with Central Pollution Control Board (CPCB) noise emission regulations set by the Government of India.
• Includes ventilation ducts and cooling provisions to prevent overheating inside the enclosure.

For installations in residential and commercial areas, using an acoustic enclosure is mandatory to meet environmental noise control standards.

6. Fuel System and Fuel Tank

The fuel system in a diesel generator ensures a continuous and controlled supply of diesel fuel to the engine for uninterrupted operation. It consists of:

• Fuel Tank – Stores the diesel required for generator operation.
• Fuel Feed Pump – Transfers fuel from the tank to the injection system.
• Fuel Filter and Water Separator – Removes impurities and moisture from the fuel before it reaches the engine.
• Fuel Injection Pump and Injectors – Precisely meters and sprays fuel into the combustion chamber.
• Return Line System – Excess unused fuel is sent back to the tank to avoid wastage.

Fuel Tank Features:

• Equipped with a Fuel Level Float, which monitors the fuel level and transmits data to the fuel gauge.
• Integrated with a Fuel Level Sensor, which triggers alarms and automatic shutdowns if fuel levels drop too low.
• Designed with anti corrosion coatings and venting systems to ensure fuel purity and prevent contamination.

Regular fuel quality checks and filter replacements are necessary to avoid engine clogging, power loss, and operational failures.

7. Exhaust System

The exhaust system is responsible for safely directing the combustion gases away from the generator and reducing emissions. It includes:

• Exhaust Bellows – Flexible connectors between the engine and exhaust system to absorb vibrations.
• DG Silencer (Muffler) – Reduces noise generated by exhaust gas flow.
• Exhaust Extension Pipe – Ensures proper gas expulsion at a safe distance from the generator.

Modern diesel generators use emission control technologies such as Diesel Particulate Filters (DPF) and Selective Catalytic Reduction (SCR) to comply with stringent environmental regulations.

Proper maintenance of the exhaust system prevents carbon buildup, improves fuel efficiency, and ensures cleaner emissions.

Final Thoughts

Each supporting component in a diesel generator plays a vital role in ensuring efficient power generation, system reliability, and safe operation. The starter motor and battery enable smooth engine startup, the control panel provides real time monitoring and control, the fuel and exhaust systems ensure continuous operation, and the acoustic enclosure minimizes noise pollution. Regular maintenance and inspections of these components are necessary to prevent failures, extend lifespan, and optimize generator performance.

By understanding these supporting systems, operators can improve diesel generator efficiency, reduce downtime, and ensure reliable backup power in critical situations.This concludes Part 2 of our 8part Diesel Generator Insights series. In the next installment, we will explore Diesel Generator Subsystems, including the Starting System, Fuel System, Lubrication System, Cooling System, and Air System.

Have any questions or thoughts? Drop a comment below! If you found this article helpful, share it with others who might benefit. Stay tuned for the next part!
